Contractor Rig Dimensions

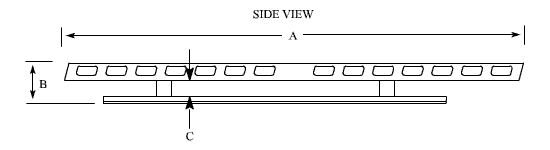

Dimensions for Enclosed Body / Box Truck Ladder Racks - side view

DIMENSIONS (inches) - CONTRACTOR RIG - SIDE VIEW - ENCLOSED BODY

A
B
C
102
12.0
6.0
120
12.0
6.0
138
12.0
6.0
147
12.0
6.0
156
12.0
6.0
174
12.0
6.0

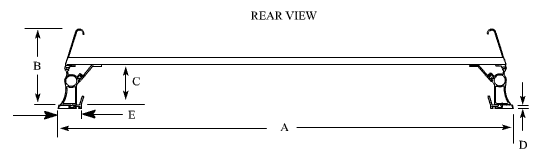

Dimensions for Enclosed Body / Box Truck Ladder Racks - end view

DIMENSIONS (inches) - CONTRACTOR RIG - REAR VIEW - ENCLOSED BODY

A
B
C
D
E
Variable as needed
12.0
11.4
.563
4.45

Utility Rig Dimensions

""

A
B
C
D
E
Varible as needed
12.6
6.0
.563
4.45
